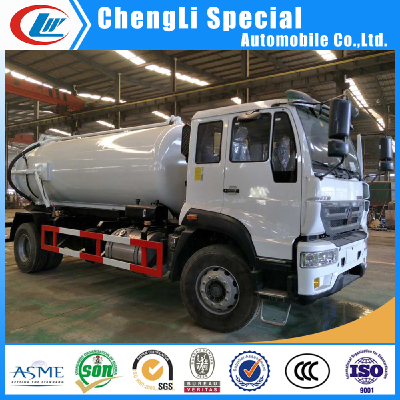

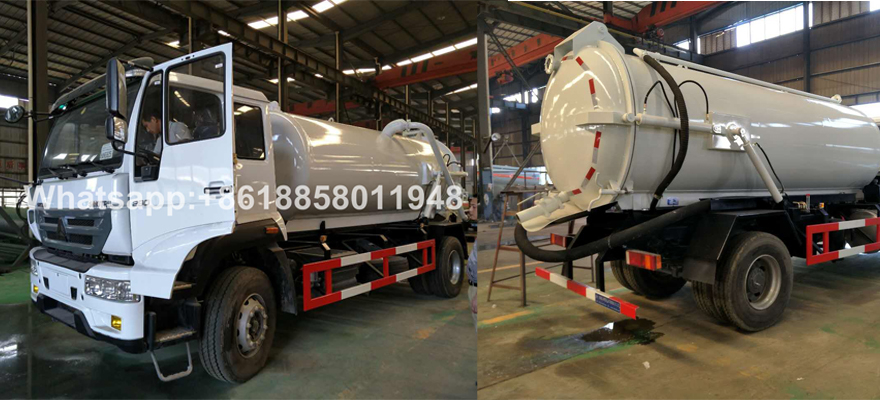

Hot sale 10CBM sewage truck vacuum suction truck for sale in Kazakhstan
1. vacuum sewage truck is mainly used for suction, transportation and discharge of sewage from septic tank and sludge from drains.Widely used by municipal environment and sanitation department and residential management.
2.Basic Equipment:
Imported vacuum pump, Powe-take-off, hydraulic cylinders, multi-way valve , pressure gauges, water-gas seperator , oil-gas seperator, level inspection window,suction hose
3. Advantages:
A.Tank can be lifted hydraulically to 40-45 degree.Rear door can be opened&closed hydraulically. With full opening design, discharge can be very quick&complete.
B.Overfill system with music horn is euipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
Description | China manufacturer 10CBM vacuum suction sewage truck | |
Condition | New condition/LHD&RHD | |
Chassis | Model | DFL |
Brand | Dongfeng | |
Wheelbase(mm) | 4700 | |
Tire Specifications | 10.00-20,10.00R20,9.00-20,9.00R20 | |
Tire No. | 6pcs with one spare tire | |
Dimensions(mm) | 8500×2400×3000 | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Gear box | 6 Forwards & 1 Reverse | |
Engine | Model | ISB180 40 |
Power(kw)/Horsepower(HP) | 132/180 | |
Emission standard | Euro 4 | |
Cylinder No. | 6 | |
Fuel type | Diesel | |
Cab | 3 | |
Vacuum pump | Model | SK-12 |
Rate of flow(m³/h) | 120 | |
Transparent suction pipe | 7m&108mm | |
vertical distance(m) | 9-10 | |
Suction Sewage Tank | Material | Carbon steel Stainless steel |
Capacity | 4cbm 6cbm 8cbm 10cbm 12cbm | |
Thickness(mm) | 4mm 5mm 6mm | |
High pressure water pump(From Italy) | Model | PRASSORITI |
Rate of flow(L/Min) | 211 | |
Pressure(Bar) | 190 | |
Double high pressure pipe | 120m&19mmPVC | |
Water Tank | Material | Carbon steel Stainless steel |
Capacity(m³) | 2cbm 3cbm 4cbm 5cbm 6cbm | |
Thickness(mm) | 4mm 5mm 6mm | |
Manhole | DN450 DN500 | |
Accessories | Item | Specifications |
Spray gun(for cleaning) | Laminated steel tube/15m&10mmPVC | |
