- Size: 20M3
- Place of Origin: Suizhou Hubei
- Brand Name: CLW
- Model Number: ZZ4257S3618
- Weight: 14950.000 kg
CNHTC Sinotruk HOWO Dump Truck/ HOWO Dumper Truck/ HOWO Dump Truck with 10 wheels/ HOWO Tipper Truck
CNHTC Sinotruk HOWO tipper truck 20tons 40 tons tipper truck 30T HOWO tipper truck
Sinotruk HOWO tipper truck 10 tires tipper truck 10 wheel dump truck capacity
Product features:
HOWO dump truck articulating tipper truck 10 wheels dump truck 40ton dump truck
Dump truck, also called tipper truck, which mainly use for transporting heavy mining stone,sand,or garbage.
Currently the dump truck are most off road dump truck, another kind is articulating dump truck.
dump truck design 4x2.4x4.6x2.6x4.6x6.8x4.8x6.8x8. road dump truck, mine dump truck.
Our company produce the dump truck with the loading capacity from 3 tons ~ 40 tons.
with HYVA brand hydraulic front tipping CNHTC Sinotruk HOWO dump truck

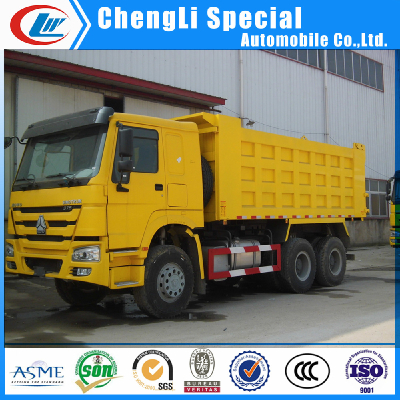

CNHTC HOWO 6X4 dump truck, tipper truck
Cabin | HOWO 7 6 Standard C ab W ith two bunks, 70° hydraulically tillable to the front as attached photo for ref. |
| ||
Vehicle Main Dimensions | (L x W x H)mm | 80 45x2500x3400 | ||
Wheel base (mm) | 3 225 +1 35 0 | |||
Wheel track (front/rear) (mm) | 2022/1830 | |||
Approach/Departure angle(°) | 1 9 / 50 | |||
Weight in KGS | Tare Weight | 117 1 0 | ||
Loading Capacity | 28 600 | |||
Front axles loading capacity | HF9 1x 8 000 | |||
Rear axles loading capacity | HC16 2x 16000 | |||
Max. driving speed(km/h) | 75 | |||
Engine | Brand | Sinotruk | ||
Model | WD615.47 | |||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Horse Power(HP) | 371HP | |||
Emission standard | Euro Ⅱ | |||
Gearbox | HW 19710 , 10 forwards & 2 reverse | |||
Clutch | Reinforced diaphragm clutch, diameter 430mm | |||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |||
Fuel tank (L) | 350 | |||
Tire | 12.00R20 All steel radial tire 1 0 pieces with one spare | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
dump Body
Thickness | Side | 6mm in high tensile strength steel Q345/B |
Front | 6mm in high tensile strength steel Q345/B | |
Bottom | 8mm in high tensile strength steel Q345/B | |
tipper body Size | (L x W x H) | 45 00mm x 2300mm x 15 4 0mm |
tipper hydraulics | tipper type | Front tipper type |
tipper system | Complete set of HYVA brand hydraulics system |
- Size: 20M3
- Place of Origin: Suizhou Hubei
- Brand Name: CLW
- Model Number: ZZ4257S3618
- Weight: 14950.000 kg
