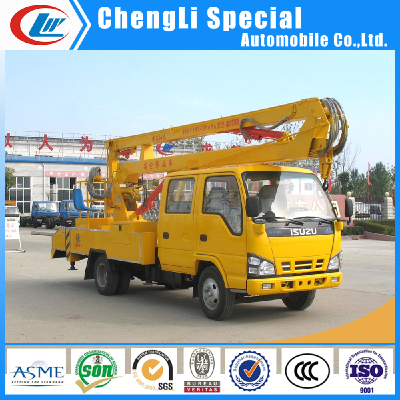

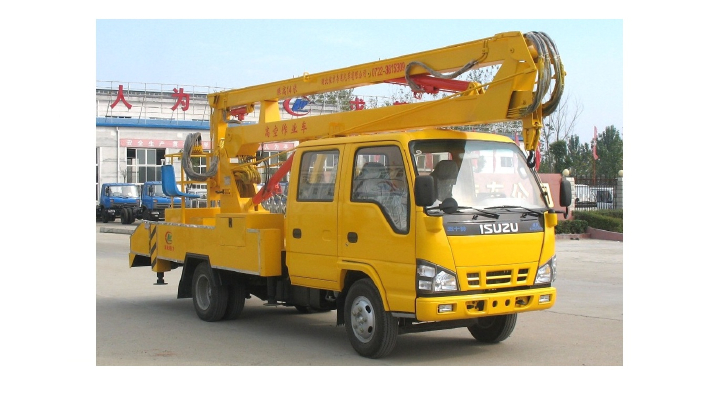

4X2 High Working Truck Small High Platform Operation Truck
Qick Information:
1.high platform working height 12-22M
2.Working bucket rated loading 200KG
3.Rotate 360 degree
4.Hook is optional
5. Key parts are imported
Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Competitive price, high quality, professional service ,you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design
6.Export covering More than 50 countries and regions
Below specification is just for your reference. More information of High Altitude Operation Truck,aerial work platform truck, high-altitude working vehicle, tail-lift truck, overhead working truck, please feel free to contact with Yuki(0086-18858011948). We will customize the truck according to your requirement.
PARAMETER
| Description of the truck | Dongfeng xiaobawang high altitude operation truck | |
| Code number | CLW5040 | |
| Drive model | 4×2 | |
| Chassis | EQ1042 | |
| Overall Dimension L*W*H mm | 7400×1980×3100 | |
| GVW | 4325 kg | |
| Curb weight | 4000 kg | |
| Wheel base mm | 3300 | |
| Wheel track(front/rear) mm | 1506/1466 | |
| Overhang (front/rear) (mm) | 1032/1968 | |
| Approach/Departure angle(°) | 19/111 | |
| Engine | Model | CY4102-C3F |
| Type | Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse power | 95 hp | |
| Output volume | 3856 ml | |
| Emission standard | Euro III | |
| Max. speed | 90 km/h | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 120 | |
| Tire | 7.00-16 , 7 pieces including one spare tire | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
| Equipment | Max operation height>=14m; max operation radius>=6m; max working platform height>=12.5m; working platform rating loading=250kg; working platform rating allowable passengers = 2; working platform dimension: 1100*570*1000 mm; protection dimension:180*50*5mm; 360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the cage., the cage can be operated both in the air and on the earth. | |
| Delivery time | 30 days after the payment | |
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing & Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
