- Size: 121m3
- Place of Origin: Suizhou, China
- Brand Name: CLW
- Model Number: CLW2
- Weight: 15300.000 kg

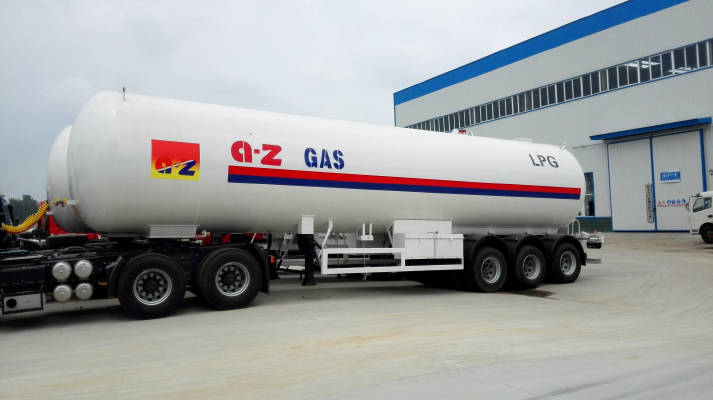

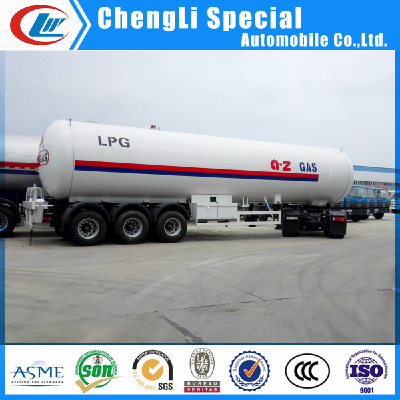

Tanker Essential Information | |
Volume of Tank (cbm) | 5 6 |
Overall Dimensions(L*W*H)(mm) | 1 27 00 *2 500 *3 9 75 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2450 * 1 2 *12 340 |
Estimated Tare Weight (kg) | 15480 |
Payload (kg) | 25000 |
Total Weight (kg) | 40000 |
Wheelbase(mm) | 6865 +1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | 50℃ |
Design Pressure( MPa ) | 1.61 |
Corrosion Allowance ( mm ) | 1 .00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q 3 45R ,1 2 mm, |
End plate： Q3 45 R, 12 mm ,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test( MPa ) | 2.1 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top ,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN 50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel Opertion type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*13T BPW |
Tire | 12R22.5 Tubeless tire ,13 including one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 2 |
Ball Valve | 2 |
Liquid Gauge | 1 |
Pressure Indicating Thermometer | 1 |
Pressure Gage | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 6 |
Paint | As Customer’s Requirement |
Standard: Pressure vessels , Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
