Light weight fuel tank trailer, aluminum alloy fuel tanker semi trailer, 3 axle oil tanker trailer 40000liters
Aluminum alloy 42m3 oil tank trailer, 3 axle 42000L fuel tank trailer
Features:
Tri-axle Aluminum oil transport trailer, 42m3 42000L oil transport semi trailer aluminum
Main Dimensions | |||||
Overall Length | 118 00mm |
| |||
Overall Width | 2500mm |
| |||
Overall Height | 3600 mm |
| |||
Tare Weight | 6800 kg |
| |||
Curb Payload | 36000 kg |
| |||
Loading Capacity | 42 m3 |
| |||

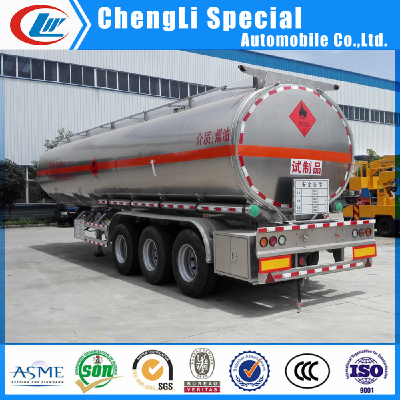

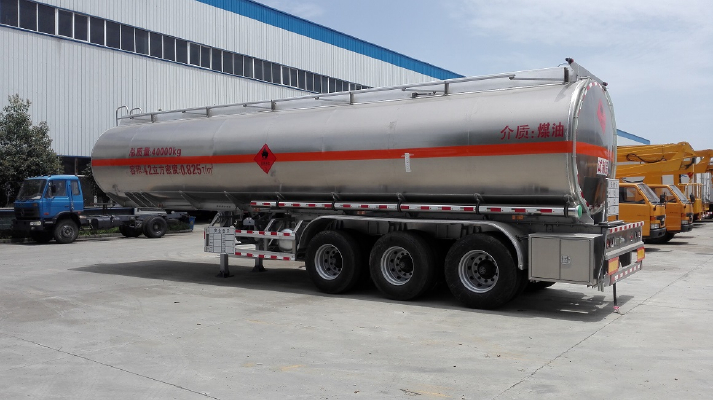

Photo only for reference, final product can be made according to exact requirements . Client Logo on Tank body | |||||
Tank Body | |||||
Shape | Elliptical | ||||
Total Volume （ m3 ） | 42 CBM | ||||
Tanker Body Material | 6 mm aluminum 5038 | ||||
End plate Material | 7mm aluminum 5038 | ||||
Baffles Material | Aluminum | ||||
Manhole of Baffles | 500mm | ||||
Manhole cover | 3 nos. API aluminum manhole cover s , ∮500mm 3 set s with 3 breather valve s,fitted with high flow vapor vent and sensing probe, three oil gauges. | ||||
Bottom Valve | 3 set of API Pneumatic Bottom Valve , Pneumatic control | ||||
Top Safety Rail | 1 Set | ||||
Walkway | Aluminum Non-slip walkways | ||||
Discharging valve | 3 set ∮100mm discharging valves | ||||
Vapor Return System | Aluminum line through barrel with section outboard of shell with vapor adapt-or and dust cover to be provided | ||||
No.of Compartment | 3 | ||||
Discharging Pipe | 4”rubber hose, 2 pc , 6m long | ||||
Anti-static wire loop | 1 | ||||
Chassis | |||||
Main Beams | Full Aluminum frame including outrigger and cross members. Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||||
Overturn Protection | Full length structural extrusion each side on top | ||||
Axle | 3 axle s | ||||
BPW 1 3 Ton . | |||||
Suspension | A complete set of BPW Air bag suspension | ||||
Landing Gear | JOST brand C205 Two-speed, manual operating, heavy duty landing gear | ||||
King Pin | JOST brand 2” or 3.5’’ bolt-in king pin | ||||
Suspension | air bag suspension | ||||
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||||
Wheel rim | 11.75-22.5 aluminum wheel rim, 7 pieces including one spare | ||||
Tire | 385/65 R2 2.5 tubeless tire with one spare tire, 7 pieces | ||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti - corrosive prime, 2 coats of final paint | ||||
Ladder | Aluminum Ladder at rear | ||||
Lights &Sound | Reverse light and buzz to be installed | ||||
Wiring | 24V,7 wire system | ||||
Accessories | One standard tool box | ||||
Stickers ass required | |||||
Fire Extinguisher 2 no. | |||||
